Game Boy Advance Backlit Consoles

$220.00 price_excluding_tax

Clear

These Game Boy Advance handhelds have been refurbished and transplanted into new shells with a bunch of mods done to them which are highlighted below:



  • Recapped all Electrolytic with Solid State Tantalum Capacitors, one capacitor is larger capacity to filter power noise in audio

  • Volume Wheel and Power Switch has been cleaned so they work like new

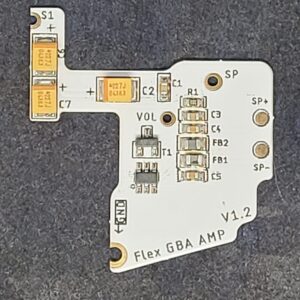

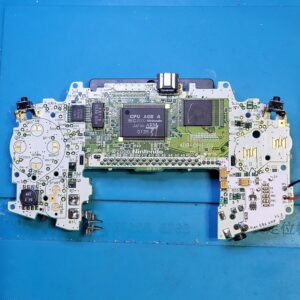

  • Custom Power Cleaning Flex PCB designed by myself is installed to clean the audio interference

  • FunnyPlaying IPS V2 Backlit LCD installed with 10 brightness levels with button combo (Select+ L or R)

  • Custom 1300mah Lipo battery with custom PCB with USB-C charge port

  • Battery Bay has been machined for the Custom Battery as well as a USB-C hole cut into the Battery Cover

  • Custom Battery PCB works with the Low Battery indicator light of the GBA console, once battery is LOW the LED will turn red like normal operation with Alkaline batteries.

Weight 0.6 lbs
Color

Clear Blue, Clear Green, Clear Lime, Clear Orange
